Sizing your USDOT decal correctly isn’t optional: FMCSA will write you up for lettering that doesn’t meet minimum specifications during a roadside inspection. We’ve been producing USDOT lettering for owner-operators and fleets since 2003, and the sizing errors we see most often are completely preventable. Here’s exactly what you need to know before you order.
Sizing Your USDOT Decal: FMCSA Requirements
The Federal Motor Carrier Safety Administration governs vehicle marking requirements under 49 CFR Part 390.21. This regulation covers which vehicles need USDOT marking, what information must appear, and the size and legibility standards that marking must meet. If your vehicle is subject to FMCSA jurisdiction (interstate commerce, gross vehicle weight rating over 10,001 pounds, or carrying hazardous materials), compliance is not optional.
The regulation requires that USDOT numbers and associated marking be:
- Displayed on both sides of the power unit
- In a color that contrasts with the background (white on dark, dark on light)
- Legible from 50 feet in daylight conditions
- At a minimum height of 2 inches for most regulated vehicles
“Legible from 50 feet” is a functional standard, not purely a size standard. But in practice, FMCSA inspectors enforce minimum letter height as the primary measurable criterion, and 2 inches is the number cited in enforcement guidance for standard commercial vehicles.
Minimum Letter Heights by Vehicle Category
While the 2-inch minimum is the most commonly cited standard, some larger vehicle categories and certain state regulations have additional requirements. Below is a practical reference for the most common commercial vehicle types.
| Vehicle Type | Minimum Letter Height | Notes |
|---|---|---|
| CMVs (most tractor-trailers, box trucks) | 2 inches | Both sides of power unit |
| Hazmat vehicles | 2 inches | Same, plus additional placard requirements |
| Passenger-carrying CMVs | 2 inches | Both sides, front and rear |
| Vehicles < 10,001 lb GVWR | Not required (see state rules) | Some states require state DOT number |
State DOT numbers have their own requirements, which vary by state. If you operate intrastate in a state that requires state DOT marking, check the specific state authority’s requirements. Some states match the 2-inch federal minimum; others specify 3 inches or additional information fields. Our state-specific USDOT guides cover many of these requirements in detail.
What “Letter Height” Actually Means

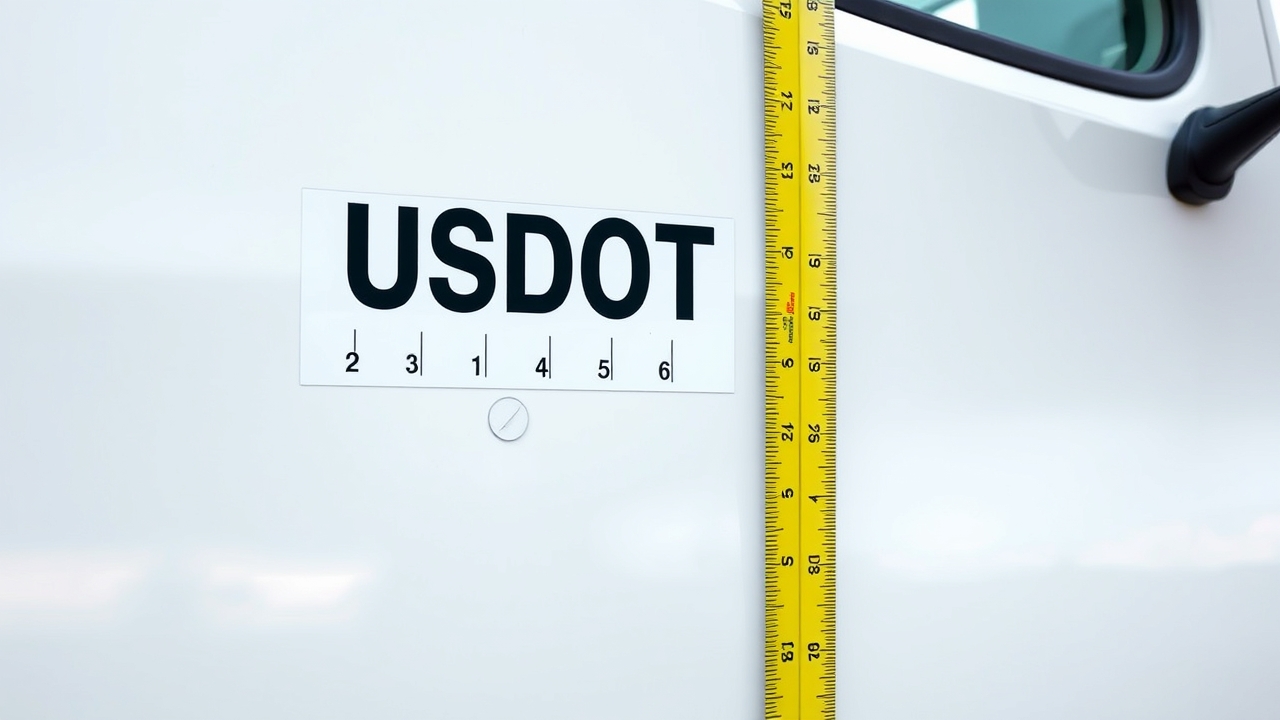

Letter height in FMCSA guidance refers to the cap height of the typeface, measured from the baseline of the letter to the top of a capital character. It does not mean the height of the text block including descenders. When you order 2-inch USDOT lettering from Hoosier Decal, your capital letters measure 2 inches from base to top. That’s what the inspector’s ruler will measure at the roadside.
Placement Rules for USDOT Numbers
Size is only part of the compliance picture. Placement matters too. FMCSA requires USDOT marking on both sides of the power unit (the tractor or the cab-over truck, not the trailer). The marking must be located so it’s visible to an enforcement officer standing on the side of the road.
Where to Place Them
Standard placement is on the door of the cab or on the cab body just behind the door, at eye level. Most fleets put USDOT numbers on the driver’s door and passenger door. If the door is painted a color that doesn’t contrast with white vinyl, using a contrasting color (black, for example) or a white-bordered lettering set is required for legibility compliance.
Trailer Marking
Trailers are not required to display USDOT numbers under federal rules, though some states have additional requirements for trailer marking. The power unit is the vehicle that must carry the USDOT and operating authority numbers. Don’t apply USDOT lettering only to the trailer and assume the power unit is covered.
Common Sizing Mistakes We See Every Week
After processing thousands of USDOT lettering orders, we’ve cataloged the errors that come back to haunt owner-operators at the scale. Most of these are avoidable with a 30-second check before you order. Here are the four we see most often, along with exactly how to avoid them.
Ordering Sticker Packs Without Checking Size
Generic USDOT sticker packs sold on large e-commerce sites frequently ship at 1.5-inch letter height. At a glance, 1.5 inches looks like a reasonable size. But it falls short of the 2-inch minimum, and a DOT inspector with a tape measure will catch it. We see customers come to us to reorder after they’ve already failed an inspection.
Measuring the Overall Sticker, Not the Letters
A USDOT sticker that measures 4 inches tall may only contain 1.75-inch letters with a border around the outside. The compliance measurement is cap height of the letters, not the outer dimensions of the sticker. If you’re checking compliance on an existing sticker, measure the letter height itself.
Low-Contrast Color Combinations
White lettering on a light gray truck, or yellow lettering on a white truck, fails the legibility standard regardless of size. FMCSA requires a color that contrasts with the vehicle background. High contrast means dark on light or light on dark. When you order from Hoosier Decal, we’ll flag a color choice that won’t pass visual inspection.
Applying Only on One Side
Both sides of the power unit are required. We occasionally see orders for a single set of USDOT lettering. One set of letters applied to the driver’s door means the passenger side is non-compliant. Always order two sets: one for each side. If you run team drivers or the passenger door sees heavy use, order a third set and keep it as a spare. Replacement is cheaper than a citation.
Using Printed Paper Labels Instead of Cut Vinyl
Inkjet or laser-printed paper labels, even laminated, don’t hold up to commercial vehicle conditions. Rain, car washes, and road chemicals degrade paper labels within months. USDOT marking needs to be cut vinyl on a rated outdoor film. Oracal 651 or 751 on a properly prepped door lasts 6-7 years. A paper label lasts one Indiana winter.
Sizing Your USDOT Decal: Ordering the Right Size
When you use our vinyl lettering builder to configure USDOT lettering, the size you input is the cap height of your letters. Select 2 inches or larger. For most standard commercial vehicles, 2.5 inches is a common choice: it exceeds the minimum and reads clearly from a distance with a bit more visual presence than the bare minimum.
We review every USDOT lettering order before it goes to the plotter. If your configuration doesn’t meet FMCSA minimums, we contact you before production. You won’t receive a non-compliant order from us. This is part of why contractors who operate regulated fleets come back to Hoosier Decal instead of ordering from print-on-demand sites: we know the requirements and catch errors before they cost you at the roadside.
If you’re managing a fleet with vehicles operating across multiple states, check our state-specific USDOT requirement guides for states with additional marking requirements beyond the federal baseline.
Frequently Asked Questions
What is the minimum size for a USDOT number on a commercial truck?
FMCSA requires a minimum letter height of 2 inches for USDOT numbers on most regulated commercial motor vehicles. This measurement refers to the cap height of the letters, not the overall sticker size. Both sides of the power unit must display the number.
Can I use any font for USDOT lettering?
You can use any legible, clear font. Script, decorative, or highly stylized fonts are not appropriate for USDOT numbers because legibility is a compliance requirement. Use a clean sans-serif font in a standard weight for USDOT and MC numbers.
Do I need USDOT numbers on my trailer as well as my truck?
Federal FMCSA rules require USDOT numbers on the power unit only, not the trailer. However, some states have additional requirements for trailer marking. Check the specific requirements for any state where you operate intrastate commerce.
What color should my USDOT numbers be?
The color must contrast with the vehicle background. White lettering on dark-painted trucks is the most common configuration. Black lettering on white trucks also works. Avoid colors that blend with your paint. Contrast legibility is a regulatory requirement under 49 CFR Part 390.21.
What happens if my USDOT lettering doesn’t meet size requirements?
A DOT inspector at a roadside scale or inspection point can issue a citation for non-compliant vehicle marking. Depending on the severity and other violations, this can result in an out-of-service order. Correct sizing before your next inspection is straightforward and not expensive.
Can I print my own USDOT sticker on a home printer?
Printed paper stickers are not appropriate for commercial vehicle marking. They are not weather-resistant and will fail within months. USDOT lettering should be cut vinyl applied directly to the door, using a 6-7 year rated outdoor film. Hoosier Decal’s USDOT lettering uses Oracal intermediate calendered vinyl for durable compliance marking.
Next Steps
Order your correctly sized USDOT lettering using our vinyl lettering builder or upload your artwork for a custom layout. Our team reviews every compliance lettering order before production. Get it right the first time, ship fast, and stay legal on the road.
